Vytran® Ultrasonic Cleaner for Bare Fiber


  • Adjustable Immersion Depth, Cleaning Time, and Intensity
  • Interchangeable Nests for Compatibility with a Range of Fiber Holders
  • Slotted Lid Reduces Cleaning Solvent Evaporation

USC2NVT

Nest for Vytran
Bottom Inserts

USC2NFJ

Nest for Fujikura®
Fiber Holders

USC2NFT

Nest for Fitel®
Fiber Holders

USC2

Ultrasonic Cleaner
for Bare Fiber

Interchangeable Nests
for Fiber Holders
(Each Sold Separately)

Nest for
Bare Fiber
(Included)

100 mL Solvent Tank

Dunking Jig

Related Items


Please Wait
Specifications
Supported Fiber Diametera 125 - 600 µm
Tank Capacity 100 mL
Tank Dimensions Ø1.7" x 2.8" Deep
(Ø43 mm x 71 mm Deep)
Cleaning Duration
(Max Setting)
>1 Minute
Peak Output Frequency 75.2 - 76.4 kHz
Transducer Power (Max) 6 W
Operating Power 36 W
Operating Current 1.5 A
Input Voltageb 100 - 240 VAC @ 47 - 63 Hz
Overall Dimensionsa
6.95" x 4.78" x 4.13"
(176.5 mm x 121.5 mm x 104.8 mm)
Mass 1.28 kg (2.82 lbs)
  • With Included Nest for Bare Fiber Installed
  • Location-Specific Power Cord Included

Click to Enlarge

The knurled adjuster allows users to set the fiber immersion depth.

Features

  • Easy-to-Adjust Immersion Depth, Cleaning Duration, and Power Level
  • Bare Fiber Nest with Magnetic Clamp Included with Ultrasonic Fiber Cleaner
  • Compatible with Isopropanol (Isopropyl Alcohol)
  • Spout for Easy Fluid Disposal; Slotted Shield for Reduced Solvent Evaporation
  • Interchangeable Fiber Holder Nests Sold Separately:
    • USC2NVT Nest for Vytran Transfer Bottom Inserts
    • USC2NFJ Nest for Fujikura® FH-100 Series Fiber Holders
    • USC2NFT Nest for Fitel® S710S Series Fiber Holders
  • Accessories Available for Vytran Nest:
    • Clamp for Non-Magnetic Inserts
    • Spacers for Long Inserts

Thorlabs' Vytran® USC2 Ultrasonic Fiber Cleaner is designed for volume processing of bare fiber. Adjustment knobs for cleaning intensity and cleaning duration allow the user to easily set repeatable cleaning parameters. The dunking jig offers adjustable immersion depth and is compatible with interchangeable fiber holder nests (each sold separately). A red LED indicates when the cleaning cycle is active.

Tilting the dunking jig submerges the fiber in the tank and initiates the ultrasonic cleaning process. The ultrasonic agitation ceases after the chosen cleaning duration. The height of the fiber holder above the solvent tank can be changed over a 0.5" (12.7 mm) range using the knurled adjuster on the side of the dunking jig, as shown in the photo above. The knurled adjuster can also be reversed to disengage the bare fiber nest and switch it out for another fiber holder nest. Each cleaner is shipped with a bare fiber nest installed in the dunking jig. Nests for Vytran, Fujikura®, and Fitel® fiber holders are sold separately below. Accessories are available below for the Vytran fiber nest to support a wider range of usage scenarios, including spacers for recessing inserts farther from the solvent tank and a clamp for non-magnetic bottom inserts.

Please note that the 100 mL solvent tank is only suitable for use with isopropyl alcohol.


Posted Comments:
No Comments Posted
Back to Top

Ultrasonic Cleaner for Bare Fiber


Click to Enlarge

A nest for bare fiber is included with the USC2 Ultrasonic Cleaner.

Click to Enlarge

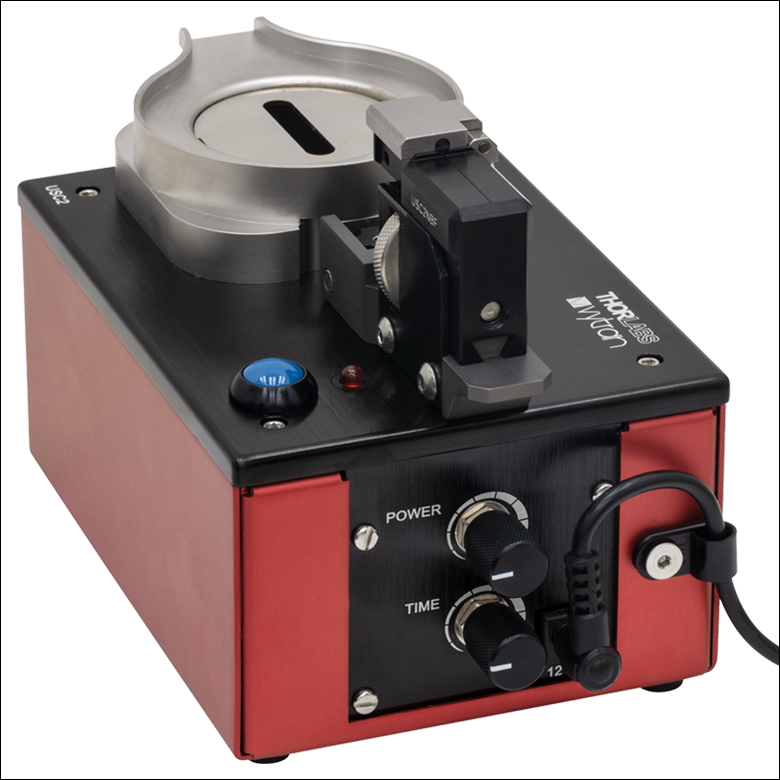

The cleaning intensity and duration controls are located on the rear of the cleaner.
  • Ultrasonic Cleaner with Nest for Ø125 - Ø600 µm Bare Fiber
  • Includes Slotted Vapor Shield, Lid, and Power Supply with Location-Specific Cord
  • Interchangeable Fiber Holder Nests Sold Separately Below
  • Compatible with Isopropyl Alcohol

The USC2 Ultrasonic Cleaner for Bare Fiber features adjustable cleaning intensity, duration, and immersion depth. The intensity and duration of the cleaning cycle is adjusted using the knobs on the rear of the unit, as shown in the photo to the right. The immersion depth is set by rotating the knurled adjuster under the fiber nest. The adjustment range is approximately 0.5" (12.7 mm) and the dunking jig offers engraved graduations as a guide.

The cleaner includes a bare fiber nest for Ø125 - Ø600 µm fiber, as shown in the photos to the right. This fiber nest features a V-groove and rubber pad design to hold the fiber without damaging it. The stainless steel hinge assembly on the side of the magnetic clamp can be adjusted to hold larger diameter fiber. It can also be flipped to accommodate a left-handed orientation.

Additional fiber holder nests are sold separately below. To remove the installed nest, rotate the knurled adjuster until the nest is disengaged. Regardless of which nest is installed, it is possible to clean fibers by hand-dipping them. In this case, agitation can be started by pressing the blue button. The cycle finishes after the timer expires. For custom nests for other fiber holders, please contact Tech Support.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
USC2 Support Documentation

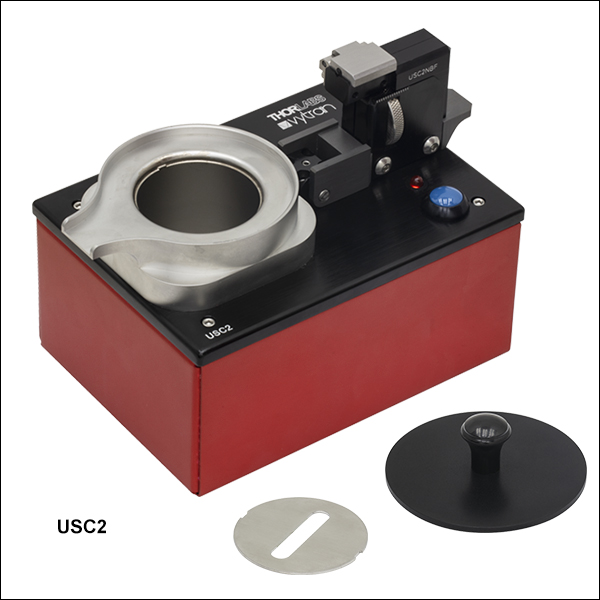

USC2Ultrasonic Fiber Cleaner with Bare Fiber Holder Nest
$2,323.44
Today
Back to Top

Additional Fiber Holder Nests

  • Interchangeable Fiber Holder Nests for Compatibility with:
    • Vytran Transfer Bottom Inserts (Item # USC2NVT)
    • Fujikura® FH-100 Series Fiber Holders (Item # USC2NFJ)
    • Fitel® S710S Series Fiber Holders (Item # USC2NFT)

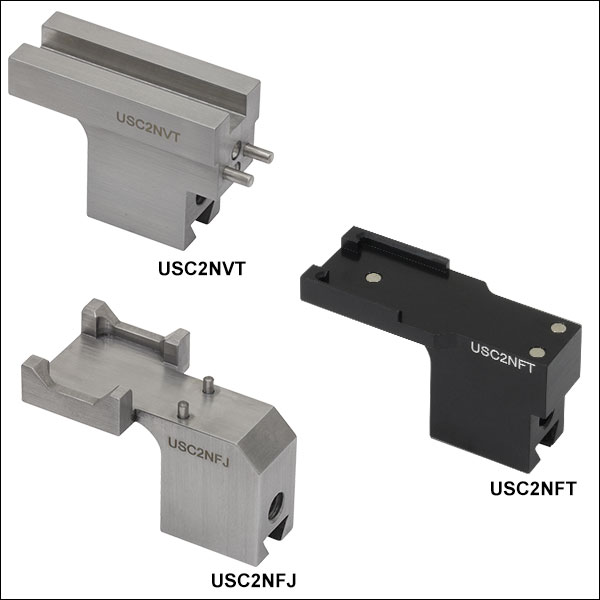

These interchangeable nests for the USC2 Ultrasonic Cleaner provide compatibility with specific transfer inserts and fiber holder designs.

The USC2NVT Nest is designed for use with Thorlabs' Vytran transfer bottom inserts and the VHT1 Transfer Insert Clamp, which are used by our Vytran Splicers and Cleavers. Accessories are available below for the Vytran fiber nest to support a wider range of usage scenarios, including spacers for recessing inserts farther from the solvent tank and a clamp for non-magnetic bottom inserts. The dowel pins on the back of the nest enable precision mounting of the spacers offered below.

The USC2NFJ Nest is compatible with Fujikura® FH-100 Series Fiber Holders. Lastly, the USC2NFT Nest is compatible with Fitel® S710S Series Fiber Holders.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
USC2NVT Support Documentation
USC2NVTUltrasonic Cleaner Nest for Vytran Bottom Inserts
$227.10
Today
USC2NFJ Support Documentation
USC2NFJUltrasonic Cleaner Nest for Fujikura® Fiber Holders
$267.87
Today
USC2NFT Support Documentation
USC2NFTUltrasonic Cleaner Nest for Fitel® Fiber Holders
$267.87
Today
Back to Top

Accessories for Vytran Fiber Holder Nest


Click for Details
View Product List
Item #QtyDescription
USC21Ultrasonic Fiber Cleaner with Bare Fiber Holder Nest
USC2NVT1Ultrasonic Cleaner Nest for Vytran Bottom Inserts
USC2CL1Magnetic Clamp for Vytran Nest
VHE101Dual-Sided Fiber Holder Bottom Insert, Ø773 µm - Ø1523 µm
VHT11Transfer Clamp with Magnetic Lid for Fiber Holder Transfer Inserts

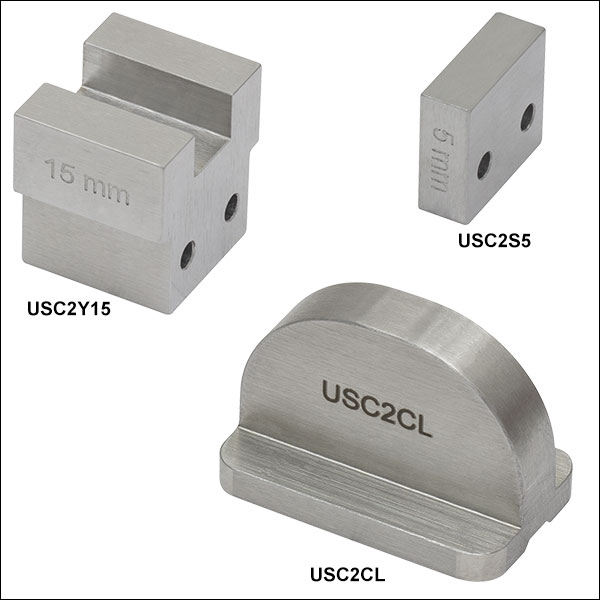

The USC2CL Clamp can be used to securely retain non-magnetic transfer inserts during cleaning.

Click for Details
View Product List
Item #QtyDescription
USC21Ultrasonic Fiber Cleaner with Bare Fiber Holder Nest
USC2NVT1Ultrasonic Cleaner Nest for Vytran Bottom Inserts
USC2Y15115 mm Spacer for Vytran Nest
VHF7501Fiber Holder Transfer Bottom Insert, Ø516 µm - Ø1047 µm
VHT11Transfer Clamp with Magnetic Lid for Fiber Holder Transfer Inserts
A spacer can be used to increase the distance between the fiber strip interface and the solvent tank.
  • Enable Greater Flexibility When Using the USC2NVT Vytran Nest
  • Spacers for Recessing Inserts Farther Back in the Vytran Nest
  • USC2CL Clamp to Retain Non-Magnetic Vytran Transfer Bottom Inserts

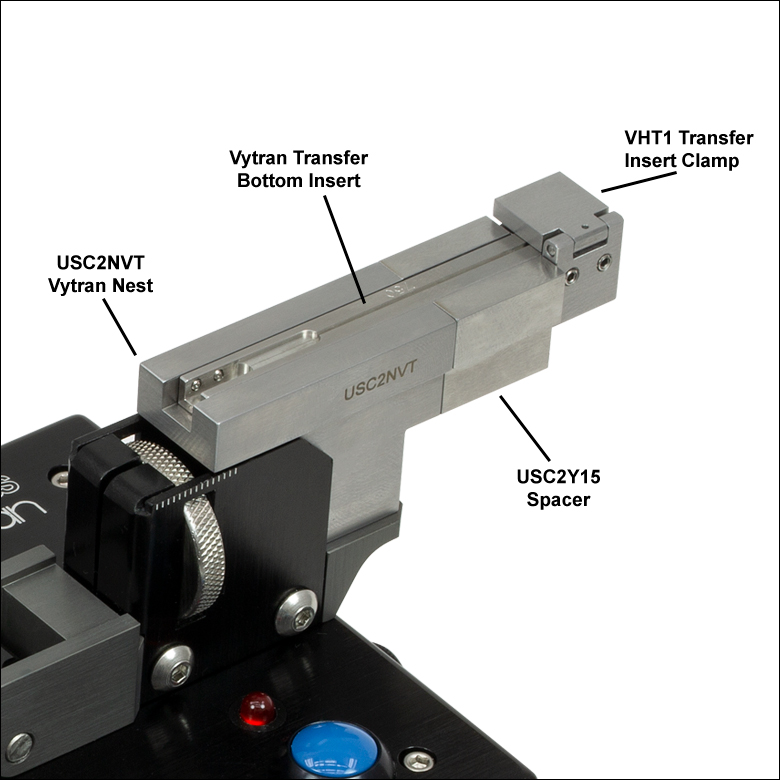

Spacers attach to the back of the USC2NVT Vytran Nest and enable inserts to be held farther back from the end of the dunking jig, as shown in the photo directly to the right. This is useful in configurations where the fiber processor user needs to have the strip interface further from the surface of the solvent than the knurled adjuster will allow.
