Mechanical Essentials Kit: Ø1/2" Optic Mounts

Click to Enlarge
Slots on the rear of the case allow for wall mounting.

Features

• Ø1/2" Optic Mounts Kit
• Imperial and Metric Options
• Drawer Dimensions (L x W x H): 10.89" x 5.50" x 3.15" (276.5 mm x 139.7 mm x 79.9 mm)
• Cabinet Dimensions (L x W x H): 17.13" x 11.11" x 11.08" (435.0 mm x 282.3 mm x 281.3 mm)
• Easy-to-Read Labels List Contents for Each Drawer
• Savings Over Individual Component Products

This kit contains our most popular kinematic, fixed, translational, and rotational mounting components for Ø1/2" optics. Refer to the Contents tab for detailed information about the components included with the imperial and metric versions of the kit. We also offer the ESK18(/M) Ø1" Optic Mounts Kit, ESK19(/M) Ø2" Optic Mounts Kit, and ESK23(/M) Specialty Optic Mounts Kit. Complement these kits with our ESK01(/M) Bases and Post Holders and ESK16(/M) Posts and Accessories Essentials Kits.

Mounting Options
The kit can be stored on a tabletop for easy, convenient access or placed on an RK4101 or RK4102 rack shelf, both of which can be installed in our RK3884 standard 19" rack. The cabinet used in each Essential Series Kit features slots in the rear of the case (see the image to the right) for wall mounting and features indentations on the top and four feet on the bottom for stable stacking.

Please Note: This kit weighs approximately 18 lbs (8.2 kg); ensure that the wall and wall mounts can support this weight prior to mounting.

Kit Components

The ESK17 includes the listed components and an ST9 9-Drawer Cabinet.

Kinematic Mounts
Item # and Description	Photo (Click to Enlarge)	Quantity
KM05 (KM05/M) Kinematic Mirror Mount for Ø1/2" Optics, 8-32 (M4) Taps		10
MH12 Mirror Holder for Ø1/2" Optics		5
KMSS (KMSS/M) Compact Kinematic Mirror Mount, Hex Adjuster, 8-32 (M4) Taps for Post Mounting		5

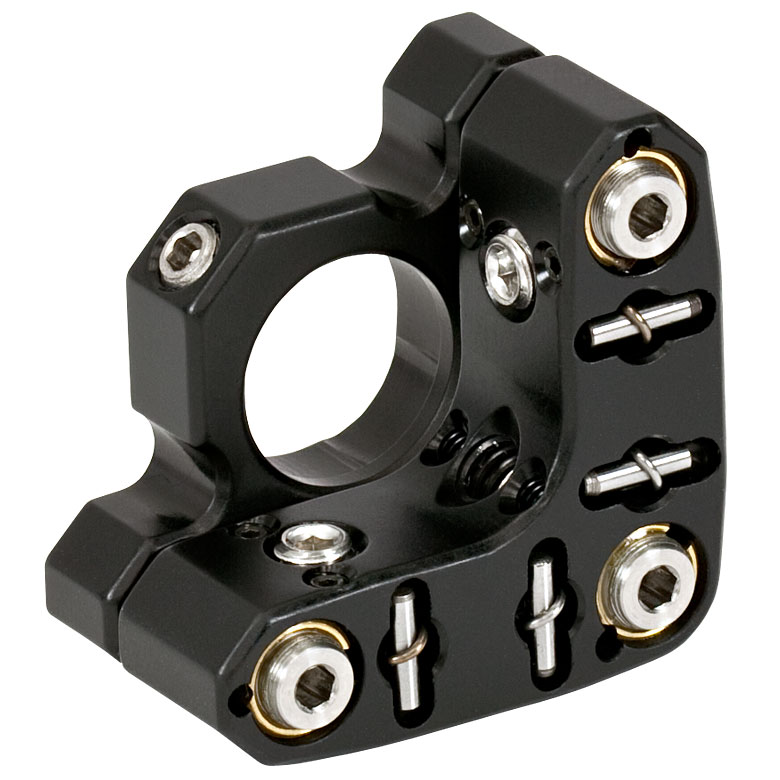

KM05FR (KM05FR/M) Rear-Loaded Right-Handed Clear-Quadrant Mirror Mount		5
MK05 (MK05/M) Mini-Series Kinematic Mirror Mount for Ø1/2" Optics, 4-40 (M3) Taps		5

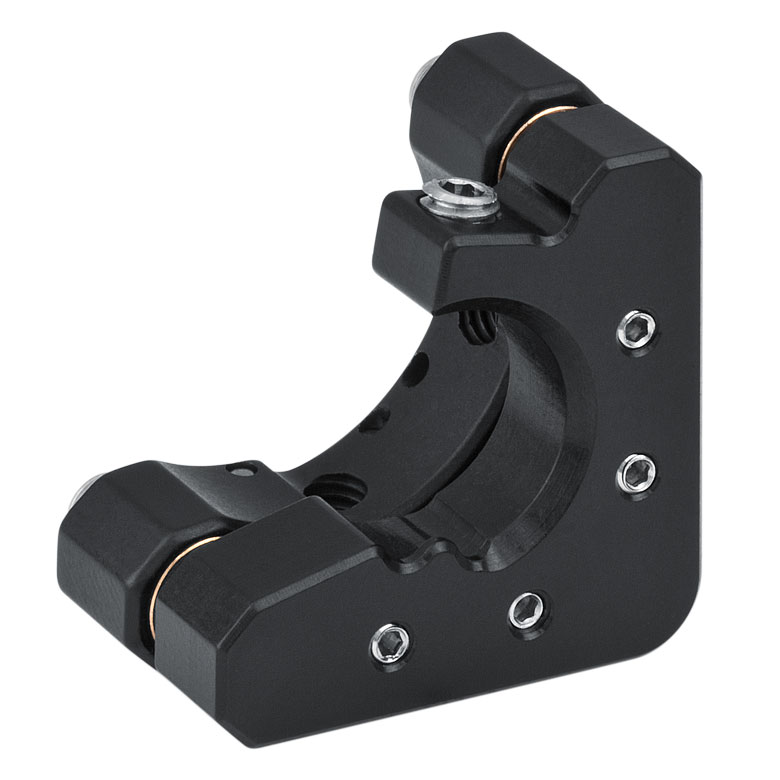

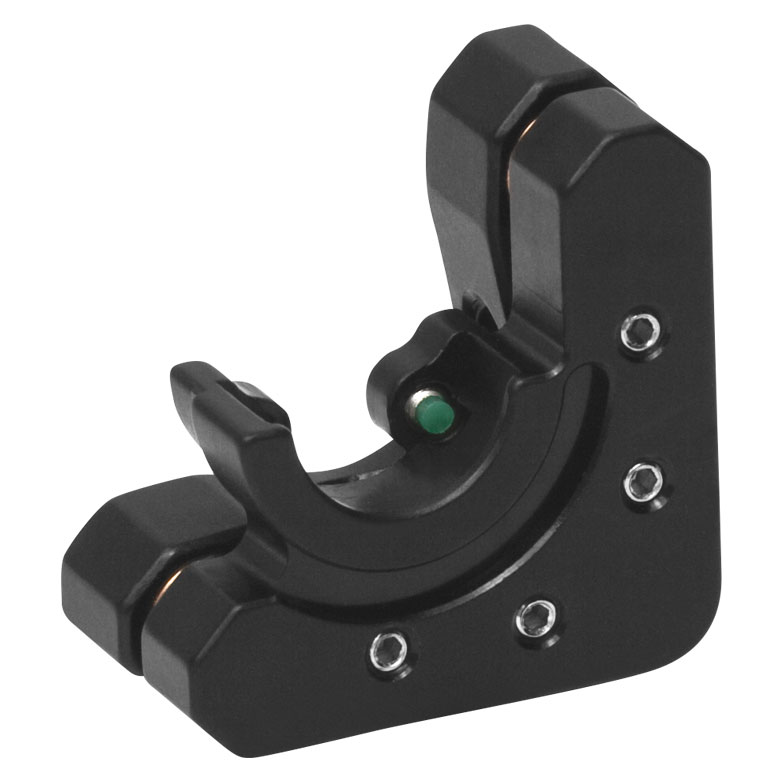

KM05DR (KM05DR/M) Right-Handed Kinematic Mount for Ø1/2" D-Shaped Mirrors, 8-32 (M4) Taps		3

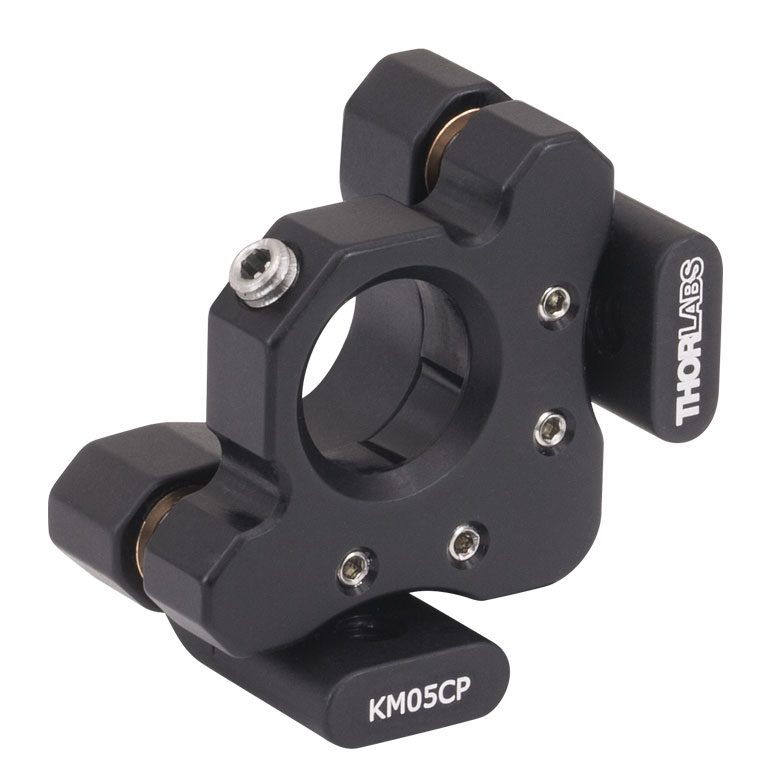

KM05CP (KM05CP/M) Kinematic Mirror Mount for Ø1/2" Optics with Post-Centered Front Plate, 8-32 (M4) Taps		5
KS05 (KS05/M) Ø1/2" Precision Kinematic Mirror Mount, 3 Adjusters, 8-32 (M4) Taps		4

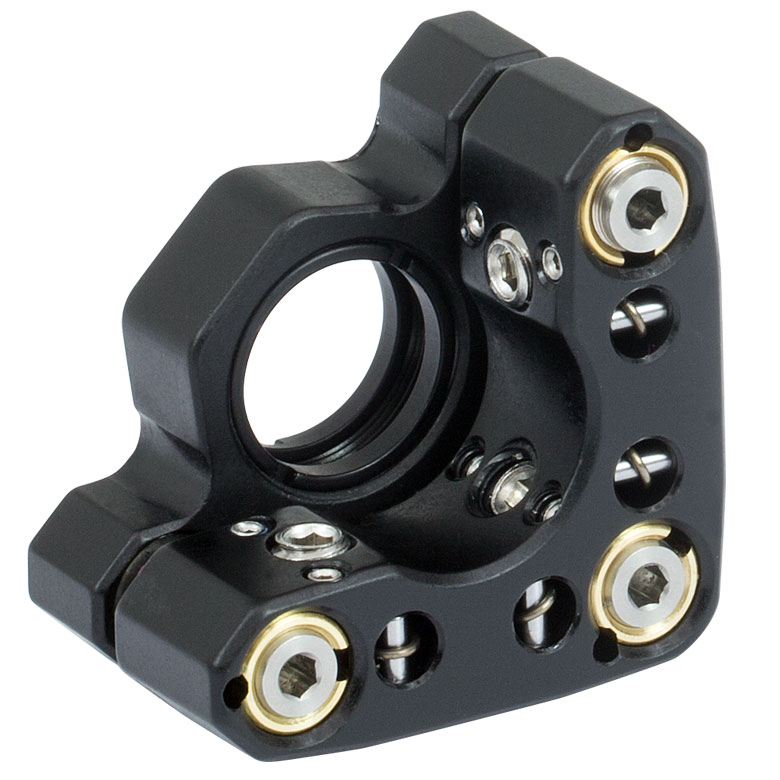

KS05T (KS05T/M) SM05-Threaded Precision Kinematic Mirror Mount for Ø1/2" Optics, 3 Adjusters, 8-32 (M4) Taps		4

Fixed Mounts
Item # and Description	Photo (Click to Enlarge)	Quantity

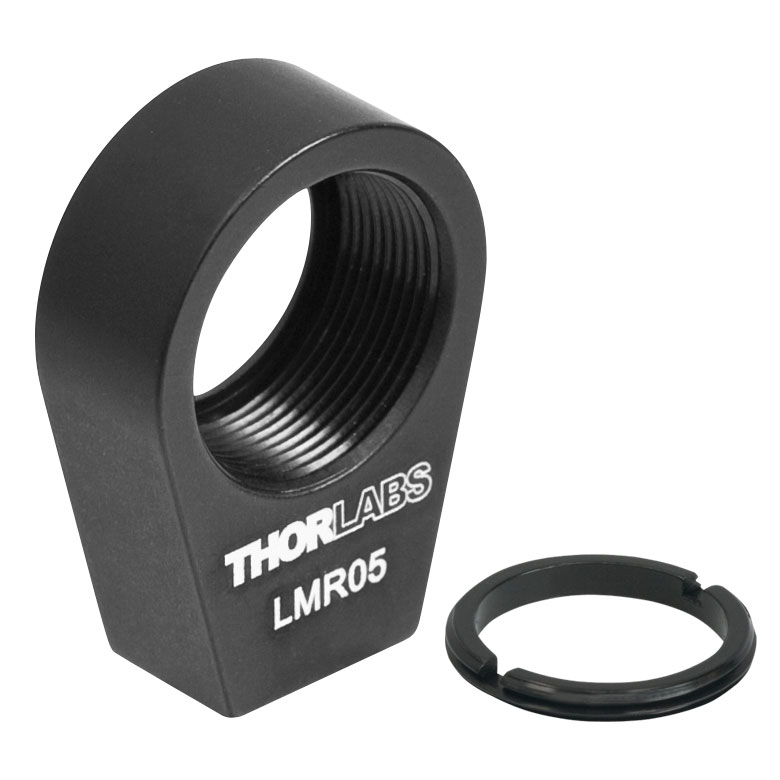

LMR05 (LMR05/M) Lens Mount with Retaining Ring for Ø1/2" Optics, 8-32 (M4) Tap		5
FMP05 (FMP05/M) Fixed Ø1/2" Mirror Mount, 8-32 (M4) Tap		5
H45A 45° Mirror Mount for Ø1/2" Optics		2

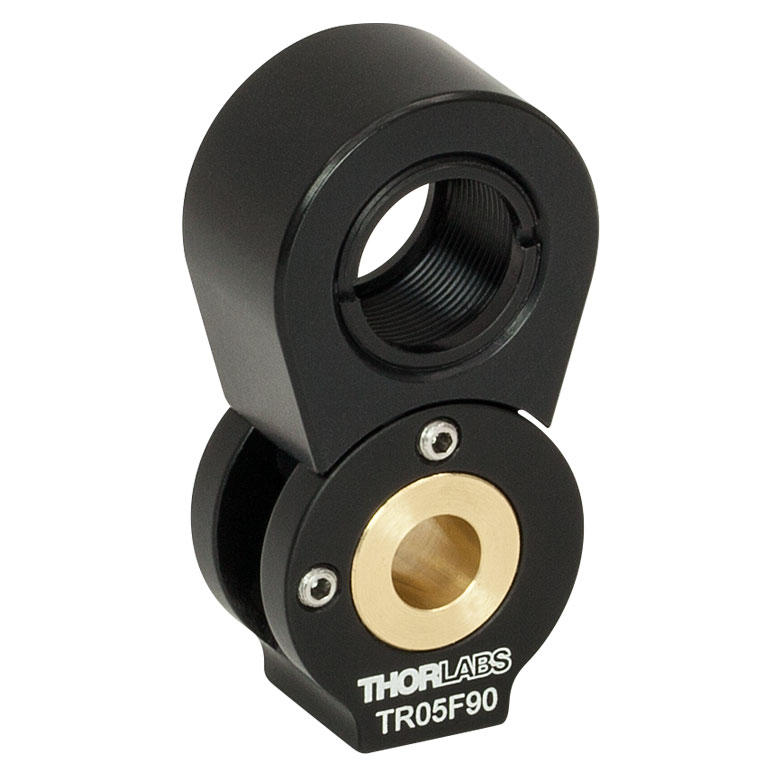

TR05F90 (TR05F90/M) 90° Flip Mount for Ø1/2" Filters and Optics, 8-32 (M4) Tap		3

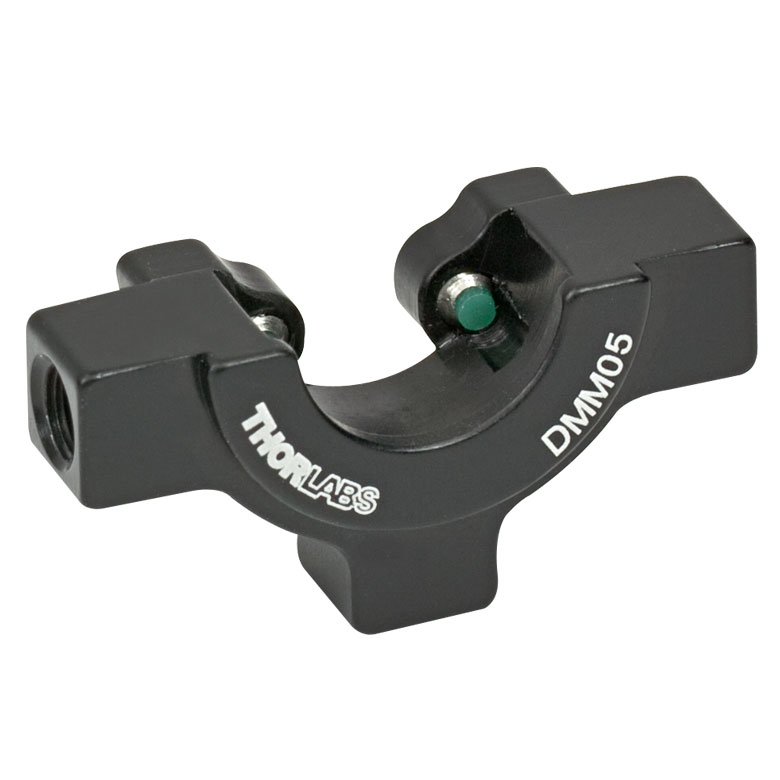

DMM05 (DMM05/M) Fixed Mount for Ø1/2" D-Shaped Mirrors		3

Rotation and Translation Mounts
Item # and Description	Photo (Click to Enlarge)	Quantity
KS05RS Kinematic Rotation Mount for Ø1/2" Optics		2
PRM05 (PRM05/M) High-Precision Rotation Mount for Ø1/2" (12.5 mm) Optics		2

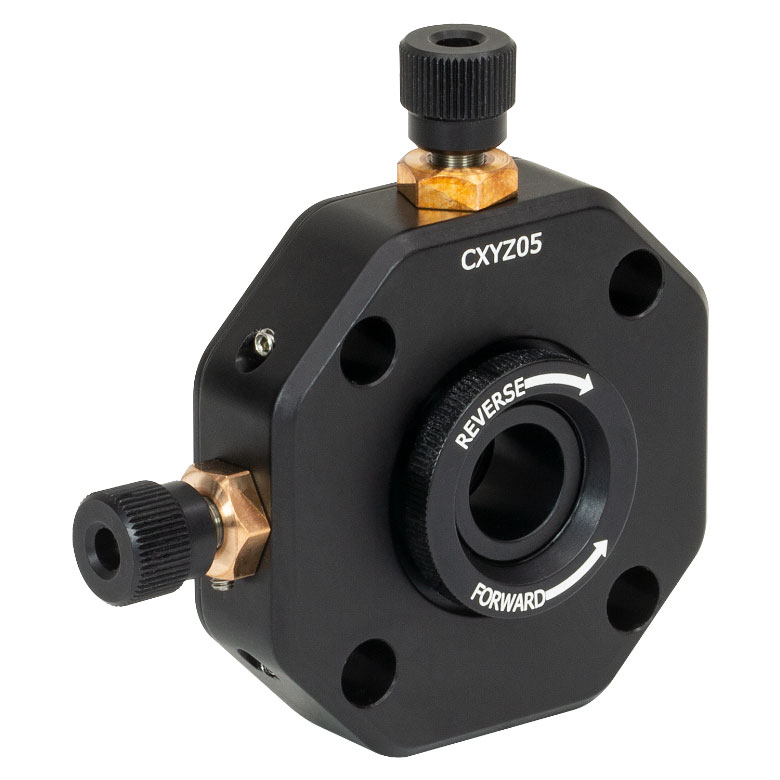

CXYZ05A (CXYZ05A/M) XYZ Translation Mount for Ø1/2" Optics, 8-32 (M4) Taps		1
RSP05 (RSP05/M) Rotation Mount for Ø1/2" (Ø12.7 mm) Optics, 8-32 (M4) Tap		2

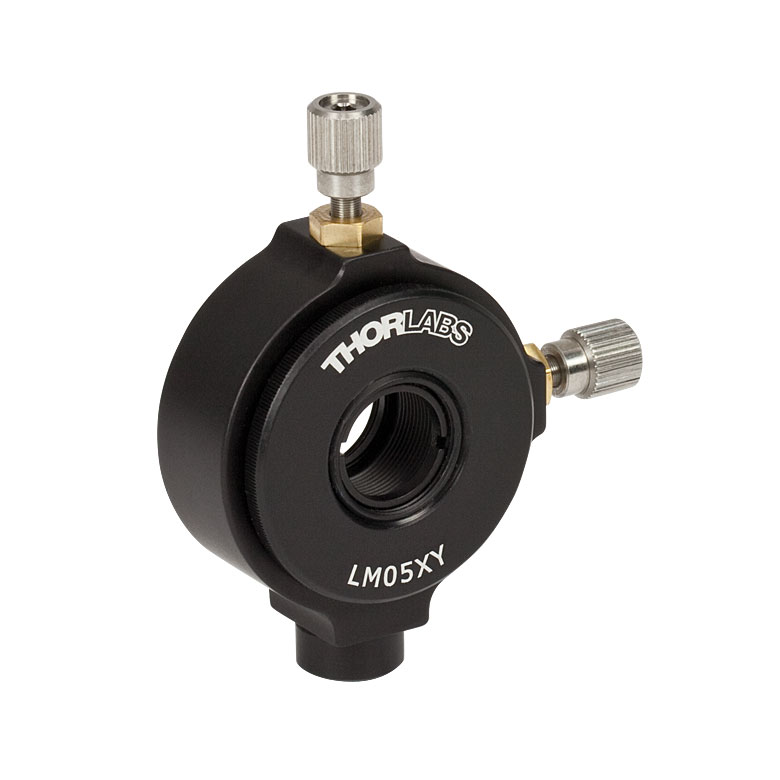

LM05XY (LM05XY/M) Translating Lens Mount for Ø1/2" Optics, 1 Retaining Ring Included, 8-32 (M4) Tap		3

Accessories
Item # and Description	Photo (Click to Enlarge)	Quantity
SS8N013 8-32 Stainless Steel Nylon-Tipped Setscrew, 1/8" Long, Pack of 10		1
HKTS-5/64 5/64" (2 mm) Hex Key Thumbscrew, Pack of 4		1
SPW603 Spanner Wrench for SM05-Threaded Retaining Rings, Length = 1.00"		1
AP8E4E (AP4M3M) Adapter with External 8-32 (M4) Threads and External 4-40 (M3) Threads		5
