1/4"-170 Matched Adjuster/Bushing Pairs


  • 1/4"-170 Matched Adjusters
  • Adjuster Lengths: 1.85" or 2.23"
  • Thread Tolerances Exceed Class 3 Standards
  • Actuate with 1/4"-80 Knobs or 5/64" Hex Key

F25ES050

1/4"-170 Matched Adjuster/Bushing Pair, Length = 1.85"

F25ES100

1/4"-170 Matched Adjuster/Bushing Pair, Length = 2.23"

F25SSK1-MULTI

16 Pack of Color-Coded Adjustment Knobs

F25SSK1S

Low Profile Adjustment Knob

F25SSK1L

Large Diameter Adjustment Knob

Related Items


Please Wait
P25SB075
Click to Enlarge

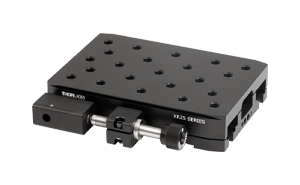

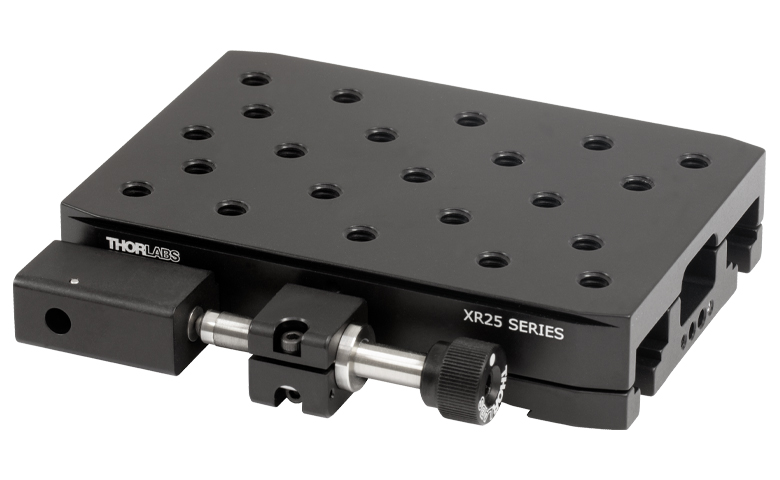

The bushing included with the F25ES050 and F25ES100 Adjusters has a 3/8" diameter for compatibility with many of our translation stages, such as the XR25P Translation Stage as shown above.

Features

  • Matched Actuators as Used in Our PT1B(/M) and MT1B(/M) Translation Stages
  • 1.85" or 2.23" Long with 170 Threads per Inch (TPI)
  • 0.1" of 1/4"-80 Threads for Adjustment Knobs
  • Stainless Steel Adjuster and Bushing
  • Additional Adjustment Knobs Available Below

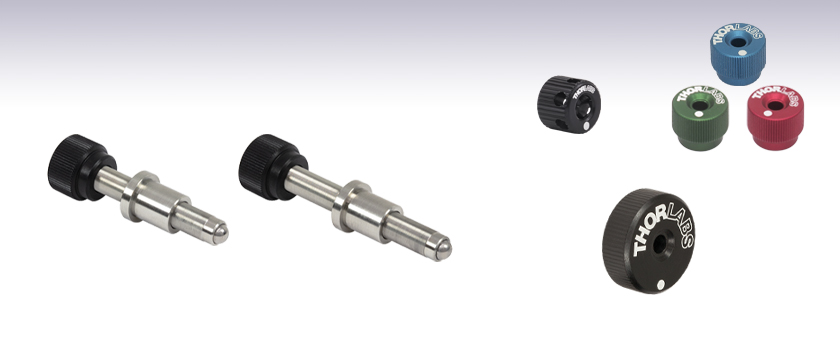

The F25ES050 and F25ES100 Matched Adjuster/Bushing Pairs use fine 1/4"-170 threads such as those found in our 1/2" (13 mm) and 1" (25 mm) travel translation stages. These adjusters exceed the industry class 3 thread tolerance standard and are also DFARS (Defense Federal Acquisition Regulation Supplement) compliant.

Each fine adjustment screw includes a 0.1" long section of 1/4"-80 thread at the end that engages the Ø0.58" adjustment knob. This knob acts as a stop when the full travel range is achieved, and we do not recommend using this adjuster without a knob attached. Doing so will increase the chance of over-actuating the adjuster, which can damage the threading. The knob can be removed and replaced with any of knobs available below. Each includes a clearance hole for accessing the adjuster's hex with a 5/64" (2.0 mm) balldriver or hex key. If the included knob is replaced by one that is supplied by the user, ensure that the entire length of 1/4"-80 threads are engaged to prevent damage.

These matched 170 TPI adjusters and bushings are manufactured to tighter tolerances than the ASME/ANSI Class 3 UTS standard so that very little adjuster lubricant is needed. In typical adjusters, actuator adjustments cause the lubricant to be squeezed out of some spaces and built up in others. Over time this nonequilibrium lubricant distribution will relax slowly back into an equilibrium state, which may cause the adjuster screw to move. Thorlabs' matched adjusters do not suffer from these problems due to their tighter tolerances.

Threaded Bushing Application

Integrating Fine Adjustment Screws Into Optomechanical Systems

The assembly process begins by producing the appropriately sized mating hole for the threaded bushing. Given the close fit between the threaded bushing and the mating adjuster screw, we caution against using a press fit to assemble these products. For our own production needs, we use a permanent anaerobic adhesive that provides excellent long-term performance.

We recommend using Loctite Anaerobic Adhesive product number 680 or equivalent. In order to ensure maximum strength between the bonded parts, we strongly urge the user to follow carefully the instructions provided by Loctite, which specify the amount of clearance between the threaded bushing and the mounting plate. The most common source of failure is not allowing for the proper clearance between the parts being bonded since this clearance provides for the proper volume of adhesive.

When assembling, apply a small amount of the Loctite adhesive to the threaded bushing only. Rotate the bushing as it is installed to ensure a uniform distribution of the adhesive. After insertion, remove any excess adhesive from around the part.

As shown in the figure to the right, the flange on the mating bushing is designed to support the axial load of the screw and bushing assembly. Please note that when mounting an adjuster/bushing pair onto a translation stage provided by Thorlabs, the orientation of the bushing would be flipped due to the lower axial load on the adjuster.

Volume Pricing Discount
Contact Thorlabs

OEM & Custom Precision Screws

Thorlabs manufactures custom and high volume OEM precision screws and bushings with various diameters, lengths, and threads. To inquire about custom or OEM precision screws, please contact Technical Support or use the "Contact Us" form to the right. A specialist will contact you within 24 hours or the next business day.

Precision Screw Capabilities

Thorlabs' in-house machine shop, located in Newton, NJ, gives us the ability to quickly produce large quantities of precision screws and bushings. We are equipped to manufacture screw diameters ranging from 2 mm to 20 mm with lengths up to 165 mm and a maximum thread pitch of 200 TPI. Our standard adjuster screw design has a hardened steel ball tip to provide a single point of contact; for other applications we are able to provide adjusters without the steel ball. Custom orders can be achieved on a case-by-case basis. For large orders of an item, Thorlabs passes on to the customer the cost savings associated with planned production of high volumes of that item. For more information on Thorlabs' discount pricing policy, click the "V" link to the right. We also offer a large variety of stock precision screws, which are available here.

Fast Turn-Around Times
Our experienced, highly skilled machinists are running our on-site Citizen Swiss Screw Machines 24 hours a day, allowing us to produce high-volume custom and OEM orders. Each machine is capable of running unattended, producing one screw every 30 to 120 seconds. This flexibility allows us to fulfill multiple orders at once without sacrificing quality.

High Quality
Thorlabs inspects all of our fabricated precision screws and bushings after the initial fabrication process and right before packaging. All inspections adhere to the ANSI AQL1.5 acceptable quality level, which states that if a certain percentage, based upon the amount of product in a certain lot, does not meet specification, then the entire lot is not sold. This ensures that all customers receive the highest quality product every time and that all items will be of equal performance.

Precision Screw Production


Posted Comments:
No Comments Posted
Back to Top

1/4"-170 Matched Adjuster/Bushing Pairs


Click to Enlarge

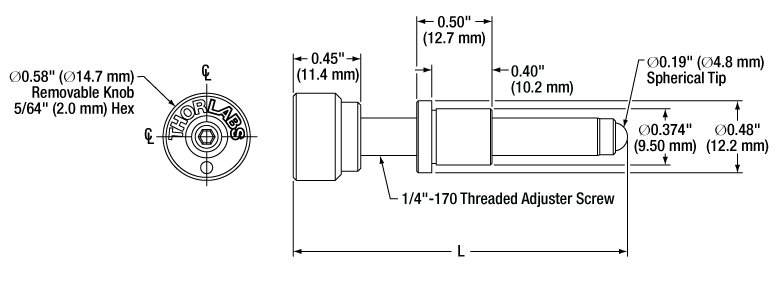

Mechanical Drawing for the F25ES050 and F25ES100 Matched Adjuster/Bushing Pairs
  • 170 TPI Pitch
  • Recommended Mounting Hole Size: Ø0.375" +0.002"/-0.000"
  • 5/64" (2.0 mm) Hex Socket
  • Removable Knurled Knob

These high-precision 1/4"-170 matched Adjuster/Bushing Pairs provide 0.006" (149.4 µm) of fine translation per revolution. The adjuster/bushing pairs can be manually adjusted either by hand or with a 5/64" (2.0 mm) balldriver or hex key; the knob does not need to be removed to use a balldriver or hex key. Each adjuster/bushing pair includes an adjuster knob; this knob may be removed to place other knobs on the exposed 1/4"-80 threads. This knob acts as a stop when the full travel range is achieved, and we do not recommend using this adjuster without a knob attached. Doing so will increase the chance of over-actuating the adjuster, which can damage the threading. The Ø0.19" (Ø4.8 mm) spherical tip of the adjuster is fixed onto the adjuster using epoxy.
