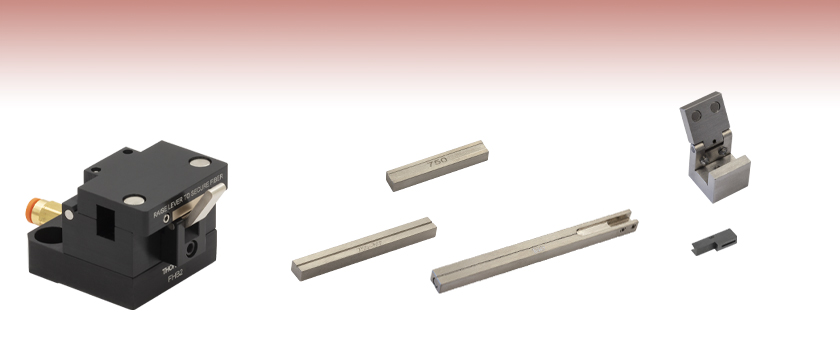

Fiber Holding Block


  • Secure Single or Multiple Fibers Using Inserts
  • Compatible Inserts for Securing Fibers up to Ø3 mm
  • Vacuum-Ready for Small Diameter Fiber Retention

FHB2

Fiber Holding Block
(Inserts and Pump
Sold Separately)

VHA05

Top Insert,
Ø410 µm - Ø1269 µm

VHD750

Bottom Insert,
Ø516 µm - Ø1047 µm

VHF160

Transfer Bottom Insert,
Ø112 µm - Ø208 µm

VHT1

Clamp for
Transfer Inserts

VHG500L

Graphite V-Groove,
Ø450 µm - Ø500 µm

Related Items


Please Wait

Click to Enlarge

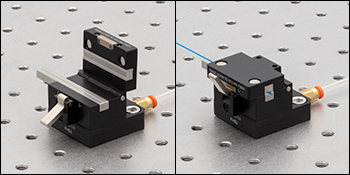

Fiber Holder with Inserts, Fiber, and Vacuum Pump Attached

Features

The FHB2(/M) Fiber Holding Block is designed to secure bare fiber for processing or coupling applications and includes a vacuum port on the rear for aid in retaining small fibers while loading/unloading. A wide selection of top and bottom inserts (one of each required to use the holding block) are also available separately below. A lever on the front of block aids in overcoming the force of the clamping magnets. An 8-32 (M4 x 0.7) tapped hole and 1/4"-20 (M6 x 1.0) counterbores in the base enable direct breadboard or post mounting.

To securely hold a fiber with a particular diameter, a set of top and bottom inserts must be installed in the fiber holding block; these are sold separately below and held in place using nylon-tipped 4-40 setscrews with 0.05" (1.3 mm) hexes.

Fiber Holder Inserts Selection Guide (Top Inserts and Standard or Transfer Bottom Inserts)

Introduction

Fiber Holder Inserts, which are designed to hold various sized fibers within the fiber holding block, must be purchased separately. Standard and transfer bottom inserts have V-grooves to hold the fiber, while the top inserts each feature a recessed, flat surface that clamps the fiber against the V-groove in the bottom insert. Each top and bottom insert is sold individually. For multi-fiber inserts, which are used to make fused couplers or combiners, the recommended top inserts are listed in the multi-fiber insert table.

The table below indicates the maximum and minimum outer diameters that can be accommodated by different combinations of top and bottom inserts. It also indicates how far offset the fiber will be for recommended combinations of top and bottom inserts. Note that this outer diameter may be the fiber cladding, jacket, or buffer. If one side of the fiber is being discarded, it is preferable to clamp onto the cladding of this section except in special cases (such as non-circular fiber) where the coating or buffer may be preferable. Sections of fiber that are not being discarded should always be clamped on the coating or buffer in order to avoid damaging the glass.

V-Groove Inserts
Each V-groove can accommodate a range of fiber sizes.
Legend
Best Fit
Second Best Fit: Try these options if the best fit does not incorporate your fiber sizes.
Third Best Fit: Try these options if the other two categories do not incorporate your fiber sizes.

Fiber Holder Insert Selection Chart

  1. First, select the bottom insert that matches your fiber size most closely.
    Example:
    For a Ø800 µm fiber, the VHF750 insert is the closest match, since it is only 50 µm smaller.
  2. On the chart below, look to the right of your chosen bottom insert. Select a compatible top insert based on the accepted diameter size range shown in each cell.
    Example:
    For the Ø800 µm example fiber from step 1, the green cell is in the 750 µm groove column for the VHA05 top insert, which has two grooves. The numbers listed in the green cell indicate that this combination of inserts is good for fibers from 728 to 963 µm in diameter. Our Ø800 µm fiber is within this range, so this is a good choice. There are several other options as well that will accommodate a Ø800 µm fiber as well, but the green shading in the chart indicates that the 750 µm groove in the VHA05 provides the best fit.
  3. The second line of numbers in each cell shows the range of offsets that can be expected for any given combination of top and bottom inserts.
    Example:
    If we choose a VHF750 bottom insert and the Ø750 µm groove in the VHA05 top insert, we can use fiber as small as 728 µm, in which case the center of the fiber would sit 23 µm below the surface of the bottom insert. We could also clamp a fiber as large as 963 µm, in which case the center of the fiber would sit 213 µm above the surface of the bottom insert. We could interpolate to find the offset experienced by our hypothetical 800 µm fiber, but it turns out that in a 60° V-groove, the offset is equal to the outer diameter difference. So in our example, that means that the center of our fiber is going to sit 50 µm above the bottom insert surface, since it is 50 µm larger than the fiber that the bottom insert was designed for (800 - 750 = 50).
  4. Holding blocks designed for fibers less than Ø1000 µm have vacuum holes, designed to aid in aligning small fiber within the groove, while bottom inserts for fibers of Ø1000 µm or larger do not have these holes. The fiber holding block can be used with a vacuum pump that provides a small holding force via these holes, keeping small fibers in place as the clamps are lowered. Inserts with vacuum holes are indicated by a superscript "d" in the table below.
Top Insert Item # VHA00a VHA05b VHA10b VHA15b VHA20b VHA25 VHA30
Accepted Diameter (Nominal) ≤320 µm 400 µm 500 µm 750 µm 1000 µm 1250 µm 1500 µm 1750 µm 2000 µm 2250 µm 2500 µm 3000 µm
Bottom Insert
Item #
Accepted
Diameter
(Nominal)
Min / Max Accepted Fiber Diameter (µm)
Min / Max Fiber Offset (µm)
VHD080c 80 µm 57 / 100
-23 / 21
- - - - - - - - - - -
VHD125c 125 µm 88 / 161
-37 / 36
- - - - - - - - - - -
VHD160c or
VHF160c,d
160 µm 112 / 208
-49 / 48
- - - - - - - - - - -
VHF250c or
VHF250c,d
250 µm 177 / 320
-73 / 69
275 / 323
23 / 74
- - - - - - - - - -
VHD400c or
VHF400c,d
400 µm 279 / 519
-122 / 119
377 / 517
-23 / 117
410 / 519
-9 / 119
- - - - - - - - -
VHD500c or
VHF500c,d
500 µm 346 / 592
-153 / 93
447 / 647
-53 / 147
476 / 711
-24 / 211
560 / 795
61 / 296
- - - - - - - -
VHD750c or
VHF750c,d
750 µm 516 / 759
-234 / 9
617 / 970
-132 / 221
643 / 878
-107 / 128
728 / 963
-23 / 213
812 / 1047
62 / 297
- - - - - - -
VHE10b 1000 µm - - 773 / 1008
-172 / 63
858 / 1093
-88 / 147
943 / 1178
-3 / 232
1036 / 1271
90 / 325
- - - - - -
1250 µm - - - 1034 / 1269
-176 / 59
1119 / 1354
-91 / 144
1212 / 1447
2 / 237
1288 / 1523
78 / 313
- - - - -
VHE15b 1500 µm - - - - 1280 / 1515
-172 / 63
1373 / 1608
-79 / 156
1449 / 1684
-2 / 233
1534 / 1769
82 / 314
- - - -
1750 µm - - - - - 1534 / 1770
-159 / 76
1611 / 1846
-83 / 152
1695 / 1930
2 / 237
1772 / 2007
78 / 313
- - -
VHE20b 2000 µm - - - - - - 1787 / 2022
-171 / 64
1871 / 2106
-86 / 149
1947 / 2183
-10 / 225
2032 / 2267
74 / 309
- -
2250 µm - - - - - - - 2033 / 2268
-167 / 68
2109 / 2344
-91 / 144
2193 / 2429
-6 / 229
2278 / 2513
78 / 313
-
VHE25 2500 µm - - - - - - - - 2270 / 2505
-172 / 64
2355 / 2590
-87 / 148
2439 / 2675
-2 / 233
2609 / 2844
167 / 402
VHE30 3000 µm - - - - - - - - - 2692 / 2944
-256 / -4
2777 / 3029
-171 / 81
2946 / 3198
-2 / 250
  • One side of the VHA00 is flat to provide additional clamping force for fibers with very small outer diameters.
  • These inserts are dual sided to accommodate two different ranges of fiber outer diameters.
  • These bottom inserts have vacuum holes to aid in aligning small fibers when used with the fiber holding block and a vacuum pump.
  • These are transfer inserts. When used with the VHT1 transfer clamp, they allow the fiber to be transferred between compatible Vytran stripping, cleaning, cleaving, splicing, and tapering stations without losing registration of the fiber tip location relative to the edges of the fiber holding block.

Fiber Holder Insert Assembly and Installation

After you select the correct fiber inserts for your nominal fiber diameter, the fiber inserts need to be installed into the fiber holding block, as illustrated in the video below to the left using our Vytran processing stations. With the FHB2 holding block, the bottom insert needs to be flush with the bare fiber side of the block for the vacuum holes to align. Standard fiber inserts are meant to remain installed in the block when processing fibers of the same size, while fiber transfer inserts are used to move a fiber from one block to another, or to a compatible Vytran machine for additional processing. Transfer inserts consist of a fiber holder bottom insert, fiber transfer clamp, and graphite V-groove that require assembly as illustrated in the video below to the right using a processing station. The steps are similar for the FHB2 holding block.

Transfer Insert Assembly Instructions
Fiber Insert Installation Instructions

Posted Comments:
No Comments Posted

Fiber Holding Block

Components

Included

  • Fiber Holding Block
  • 0.050" Hex Key

Must be Purchased Separately

  • Fiber Holder Top Insert (One Required)
  • Fiber Holder Bottom Insert (One Required)

Optional Accessories (Not Offered by Thorlabs)

  • Vacuum Pump
  • Slots for Common Vytran Fiber Inserts (Sold Separately Below)
  • Vacuum Port for Small Fiber Retention When Used with Vacuum-Compatible Inserts (Sold Separately Below)
  • Lid Lever for Overcoming Magnet Force
  • Mounting Features:
    • 8-32 (M4 x 0.7) Tapped Hole for Post Mounting
    • 1/4" (M6) Counterbores for Breadboard Mounting

The FHB2(/M) Fiber Holding Block uses a top and bottom insert (sold separately below) to retain fiber for processing or coupling applications. A vacuum pump (not offered by Thorlabs) aids in the retention of small fibers when used with vacuum-compatible bottom inserts (available separately below). The block can be Ø1/2" or Ø1" post-mounted or directly mounted to a breadboard or other optomech using the tapped hole or counterbores in the base, respectively. The block's base can also be removed and rotated 180° for flexibility with mounting and vacuum tube positioning.

To use the FHB2(/M) block, first mount it as desired and install the inserts as detailed below. If using a vacuum pump, attach 5/32" (4 mm) OD tubing to the block, pull lightly on the orange sleeve protruding from the vacuum fixture to secure the tube, connect the tubing to the pump, and turn the pump on. Lastly, insert the fiber, close the block's lid, and raise the lever to engage the clamp magnets. We recommend using a vacuum pump that can provide vacuum equal to or better than -27 kPa (-203 mmHg, -270 mbar, -8 "Hg) and with a flow rate of 5 L/min or more.

Insert Installation
To install a bottom V-groove insert in the fiber block base, first orient the insert such that the desired V-groove side is facing up. Place the insert in the base, ensuring it is fully seated and that the end is flush on the side of the block where the bare fiber will protrude. To secure the insert, gently tighten the two 4-40 nylon-tipped setscrews using the included 0.05" hex key. To remove the bottom insert, back off the two set screws (one full turn counter-clockwise should be sufficient). The insert should slide freely side-to side and can easily be removed by "overhanging" one end of the insert and then lifting it up and out with the hex key. The top inserts can be similarly installed and removed using the two setscrews accessible on the front side of the block's top.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
FHB2 Support Documentation
FHB2NEW!Fiber Holding Block, 8-32 Tapped Hole and 1/4" Counterbores
$903.00
Today
+1 Qty Docs Part Number - Metric Price Available
FHB2/M Support Documentation
FHB2/MNEW!Fiber Holding Block, M4 x 0.7 Tapped Hole and M6 Counterbores
$903.00
Today

Top Inserts - One Required

Top Inserts
Item # Side 1 Accepted
Diameter (Min/Max)
Side 2 Accepted
Diameter (Min/Max)
VHA00 57 µm / 759 µma 275 µm / 970 µm
VHA05 410 µm / 1008 µm 560 µm / 1269 µm
VHA10 812 µm / 1515 µm 1036 µm / 1770 µm
VHA15 1288 µm / 2022 µm 1534 µm / 2268 µm
VHA20 1772 µm / 2505 µm 2032 µm / 2944 µm
VHA25 2278 µm / 3029 µm N/A
VHA30 2609 µm / 3198 µm N/A
  • Side 1 of the VHA00 is flat to provide additional clamping force for fibers with very small diameters.
  • Top Inserts for Fiber Holding Blocks
  • For Fiber Outer Diameters (Cladding/Coating) from 57 µm to 3.198 mm (See the Fiber Holder Inserts Tab for Information on Choosing Inserts)
  • Single-Sided and Dual-Sided Inserts Available (See Table to the Right for Details)

These top inserts are placed in the FHB2 fiber holding block along with either a bottom or transfer insert to secure the fiber. The inserts clamp the cladding, buffer, or coating of the fiber and can accommodate outer diameters of up to 3.198 mm. The Fiber Holder Inserts tab above includes information to aid in selecting and installing the correct combinations of top and bottom inserts to accommodate different fiber diameters.

The VHA standard top inserts come in single-sided and dual-sided versions. These standard inserts can also be used in our Automated Glass Processors, LDC401 Series of Fiber Cleavers, FPS301 Stripping and Cleaning Station, and LFS4100 Splicing System.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
VHA00 Support Documentation
VHA00Dual-Sided Fiber Holder Top Insert, Ø57 µm - Ø970 µm
$185.18
Today
VHA05 Support Documentation
VHA05Dual-Sided Fiber Holder Top Insert, Ø410 µm - Ø1269 µm
$185.18
Today
VHA10 Support Documentation
VHA10Dual-Sided Fiber Holder Top Insert, Ø812 µm - Ø1770 µm
$185.18
Today
VHA15 Support Documentation
VHA15Dual-Sided Fiber Holder Top Insert, Ø1288 µm - Ø2268 µm
$185.18
Today
VHA20 Support Documentation
VHA20Dual-Sided Fiber Holder Top Insert, Ø1772 µm - Ø2944 µm
$185.18
Today
VHA25 Support Documentation
VHA25Fiber Holder Top Insert, Ø2278 µm - Ø3029 µm
$185.18
Today
VHA30 Support Documentation
VHA30Fiber Holder Top Insert, Ø2609 µm - Ø3198 µm
$185.18
Today

Single-Fiber Bottom Inserts - One Required for Single Fibers

Single-Fiber Bottom Insertsa
Item # Transfer
Insert
Side 1 Min/Max
Accepted Diameter
Side 2 Min/Max
Accepted Diameter
Vacuum
Holes
VHD080 No 57 µm / 100 µm N/A Yes
VHD125 No 88 µm / 161 µm
VHD160 No 112 µm / 208 µm
VHF160 Yesb
VHD250 No 177 µm / 323 µm
VHF250 Yesb
VHD400 No 279 µm / 519 µm
VHF400 Yesb
VHD500 No 346 µm / 795 µm
VHF500 Yesb
VHD750 No 516 µm / 1047 µm
VHF750 Yesb
VHE10 No 773 µm / 1271 µm 1034 µm / 1523 µm No
VHE15 No 1280 µm / 1769 µm 1534 µm / 2007 µm
VHE20 No 1787 µm / 2267 µm 2033 µm / 2513 µm
VHE25 No 2270 µm / 2844 µm N/A
VHE30 No 2692 µm / 3198 µm N/A
  • Please see the Fiber Holder Inserts tab for information on how to match top and bottom inserts.
  • If using this block with compatible Vytran systems, a transfer insert may be used in place of the standard bottom insert. Combined with the VHT1 transfer clamp, transfer inserts allow the fiber to be moved between compatible Vytran stations while maintaining coarse alignment.

These bottom inserts each have a V-Groove on one or both sides that can accommodate a range of diameters (as indicated in the table to the right). Bottom inserts are sold individually, and one is required to use the fiber holding block. The top (available above) and bottom fiber holder inserts can be paired in different combinations, outlined on the Fiber Holder Inserts tab above, to accommodate fiber with outer diameters from 57 µm to 3.198 mm.

Three types of bottom inserts are available. Standard bottom inserts for fiber with an outer diameter <Ø1.047 mm have vacuum holes to help position the fiber in the groove. For certain fiber diameters, we also offer transfer inserts (Item #s beginning with VHF) designed to work with the VHT1 transfer clamps (available below) that aid in moving the fiber between compatible Vytran stations while maintaining coarse alignment. The VHE series of fiber holder bottom inserts have a V-Groove on one (VHE25 and VHE30) or both sides (VHE10, VHE15, and VHE20) but do not include vacuum holes. The VHF transfer inserts and VHE bottom inserts can both be installed in other, compatible Vytran stations, although the VHE bottom inserts cannot be used with the VHT1 transfer clamp.

If using the FHB2(/M) block as a stand-alone device, the VHD series or VHE series inserts will be sufficient. If moving fibers between the holding block and Vytran systems, a transfer insert and VHT1 transfer clamp (available below) can be used for certain fiber sizes, as indicated in the table to the right. For information on how to assemble transfer inserts, see the Fiber Holder Inserts tab.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
VHD080 Support Documentation
VHD080Fiber Holder Bottom Insert, Ø57 µm - Ø100 µm
$231.76
Today
VHD125 Support Documentation
VHD125Fiber Holder Bottom Insert, Ø88 µm - Ø161 µm
$231.76
Today
VHD160 Support Documentation
VHD160Fiber Holder Bottom Insert, Ø112 µm - Ø208 µm
$231.76
Today
VHF160 Support Documentation
VHF160Fiber Holder Transfer Bottom Insert, Ø112 µm - Ø208 µm
$344.74
Today
VHD250 Support Documentation
VHD250Fiber Holder Bottom Insert, Ø177 µm - Ø320 µm
$231.76
Today
VHF250 Support Documentation
VHF250Fiber Holder Transfer Bottom Insert, Ø177 µm - Ø320 µm
$344.74
Today
VHD400 Support Documentation
VHD400Fiber Holder Bottom Insert, Ø279 µm - Ø519 µm
$231.76
Today
VHF400 Support Documentation
VHF400Fiber Holder Transfer Bottom Insert, Ø279 µm - Ø519 µm
$344.74
Today
VHD500 Support Documentation
VHD500Fiber Holder Bottom Insert, Ø346 µm - Ø795 µm
$231.76
Today
VHF500 Support Documentation
VHF500Fiber Holder Transfer Bottom Insert, Ø346 µm - Ø795 µm
$344.74
Today
VHD750 Support Documentation
VHD750Fiber Holder Bottom Insert, Ø516 µm - Ø1047 µm
$231.76
Today
VHF750 Support Documentation
VHF750Fiber Holder Transfer Bottom Insert, Ø516 µm - Ø1047 µm
$344.74
Today
VHE10 Support Documentation
VHE10Dual-Sided Fiber Holder Bottom Insert, Ø773 µm - Ø1523 µm
$231.76
Today
VHE20 Support Documentation
VHE20Dual-Sided Fiber Holder Bottom Insert, Ø1787 µm - Ø2513 µm
$231.76
Today
VHE25 Support Documentation
VHE25Fiber Holder Bottom Insert, Ø2270 µm - Ø2844 µm
$231.76
Today
VHE30 Support Documentation
VHE30Fiber Holder Bottom Insert, Ø2692 µm - Ø3198 µm
$231.76
Today

Fiber Transfer Clamp and Graphite V-Grooves - Required for VHF Transfer Bottom Inserts

Graphite V-Grooves
Item # Accepted Diametera
(Min / Max)
Groove
Length
VHG125 80 µm / 125 µm 0.313"
VHG125L 80 µm / 125 µm 0.594"
VHG200 150 µm / 200 µm 0.313"
VHG250 200 µm / 250 µm 0.313"
VHG250L 200 µm / 250 µm 0.594"
VHG300 250 µm / 300 µm 0.313"
VHG350 300 µm / 350 µm 0.313"
VHG400 350 µm / 400 µm 0.313"
VHG450 400 µm / 450 µm 0.313"
VHG500 450 µm / 500 µm 0.313"
VHG500L 450 µm / 500 µm 0.594"
VHG550 500 µm / 550 µm 0.313"
  • Graphite V-grooves are not required for fibers with diameters larger than 550 µm.

These Transfer Clamps and V-Grooves are used with the VHF Transfer Bottom Inserts sold above to move a single fiber between the FHB2(/M) fiber block and various Vytran systems with minimal loss of alignment. For example, a fiber can be placed in a transfer insert and cleaved using the LDC401 Fiber Cleaver. Then, the entire transfer insert and fiber can be moved to a glass processor for splicing.

The VHT1 clamp secures transfer inserts with a magnetic lid that prevents axial movement of the fiber and can be used to hold the insert during transport without touching the fiber itself. For fibers with diameters ≤550 µm, a graphite V-groove is available to support the fiber during processing (please see the size table to the right for more information). To provide extended support along the length of the fiber and reduce the amount of overhang during processing, we also offer 0.594" long V-grooves (Item #s VHG125L, VHG250L, and VHG500L). The graphite V-grooves are secured by tightening two setscrews on the transfer insert. For information on how to assemble transfer inserts, see the Fiber Holder Inserts tab.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
VHT1 Support Documentation
VHT1Transfer Clamp with Magnetic Lid for Fiber Holder Transfer Inserts
$267.87
Today
VHG125L Support Documentation
VHG125LExtended Graphite V-Groove, Ø80 µm - Ø125 µm, 0.594" Length
$166.55
Today
VHG200 Support Documentation
VHG200Graphite V-Groove, Ø150 µm - Ø200 µm, 0.313" Length
$154.90
Today
VHG250 Support Documentation
VHG250Graphite V-Groove, Ø200 µm - Ø250 µm, 0.313" Length
$154.90
Today
VHG250L Support Documentation
VHG250LExtended Graphite V-Groove, Ø200 µm - Ø250 µm, 0.594" Length
$166.55
Today
VHG300 Support Documentation
VHG300Graphite V-Groove, Ø250 µm - Ø300 µm, 0.313" Length
$154.90
Today
VHG350 Support Documentation
VHG350Graphite V-Groove, Ø300 µm - Ø350 µm, 0.313" Length
$154.90
Today
VHG400 Support Documentation
VHG400Graphite V-Groove, Ø350 µm - Ø400 µm, 0.313" Length
$154.90
Today
VHG450 Support Documentation
VHG450Graphite V-Groove, Ø400 µm - Ø450 µm, 0.313" Length
$154.90
Today
VHG500 Support Documentation
VHG500Graphite V-Groove, Ø450 µm - Ø500 µm, 0.313" Length
$154.90
Today
VHG500L Support Documentation
VHG500L Extended Graphite V-Groove, Ø450 µm - Ø500 µm, 0.594" Length
$166.55
Lead Time
VHG550 Support Documentation
VHG550Graphite V-Groove, Ø500 µm - Ø550 µm, 0.313" Length
$154.90
Today

Multi-Fiber Bottom Inserts - One Required for Multiple Fibers

Multi-Fiber Bottom Inserts
Item # Type
(Click for Drawing)
Accepted Diameters Recommended
Top Inserta
VHD125S Side-by-Side 125 µm / 125 µm VHA00
VHD250S Side-by-Side 250 µm / 250 µm
VHD320S Side-by-Side 320 µm / 320 µm
VHD250V Double-V Slot 250 µm / 250 µm
VHD320V Double-V Slot 320 µm / 320 µm
VHD320P Double-V Slot w/ Pins 320 µm / 320 µm
VHS250250 Triple-V Slot 250 µm / 250 µm / 250 µm
VHS250400 Triple-V Slot 250 µm / 400 µm / 250 µm
VHS250500 Triple-V Slot 250 µm / 500 µm / 250 µm
VHS300350 Triple-V Slot 300 µm / 350 µm / 300 µm
VHS320400 Triple-V Slot 300 µm / 400 µm / 300 µm
VHS320550 Triple-V Slot 320 µm / 550 µm / 320 µm VHA05

Click to Enlarge

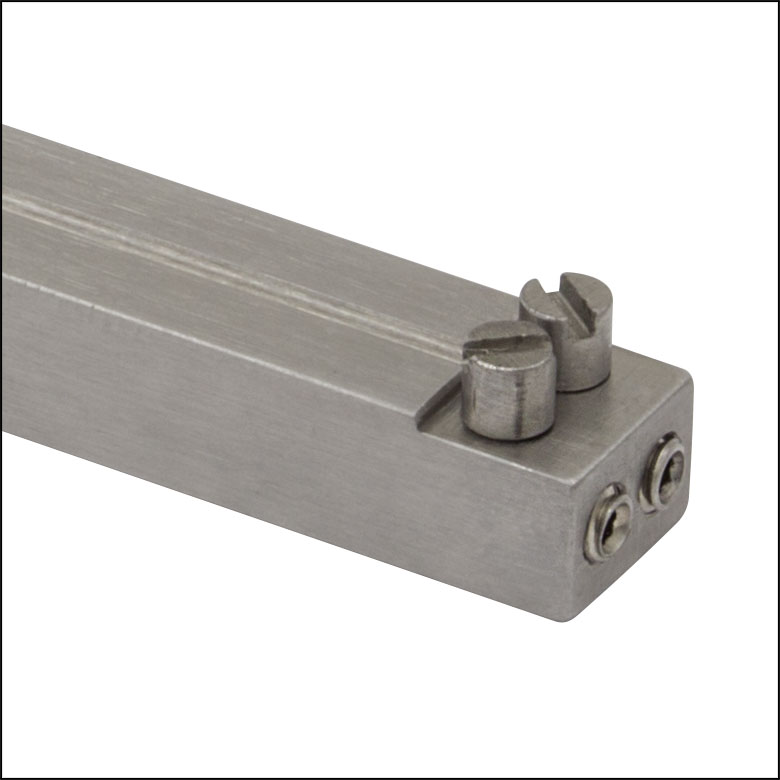

The VHD320P features adjustment pins that are used to bring two fibers into very close proximity for processing.
  • Bottom Inserts with Grooves for Holding Multiple Fibers
  • Used When Creating Fused Couplers or Combiners
  • Vacuum Holes for Aligning Fibers in V-Grooves or Slots
  • Multiple Insert Types Available (See Table for Options)

Multi-Fiber Inserts are designed for applications requiring two or three fibers to be tapered and fused together, such as when making wavelength division multiplexers, fused fiber couplers, or power combiners.

Side-by-side inserts have a U-shaped groove for holding two fibers tightly together in parallel. Double-V-slot inserts feature two parallel V-grooves on the same side of the insert that each hold a single fiber. The VHD320P insert additionally features offset adjustment pins that are used to bring the two fibers in close contact during processing (see photo to the left). Triple-V-slot inserts have a V-groove in the middle and two V-grooves adjacent on both sides that allow a signal fiber to be fused with two pump fibers.

The grooves machined into the inserts ensure the fiber is centered within the fiber holder. Vacuum holes at the bottom of the transfer inserts are used for holding and aligning small fibers within the V-groove. Recommended top inserts for each multi-fiber insert are indicated in the table to the right. Alignment of the fibers will not be maintained when these inserts are transferred between systems.

These inserts are also compatible with our automated glass processors.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
VHD125S Support Documentation
VHD125SSide-by-Side Fiber Holder Bottom Insert, Ø125 µm / Ø125 µm
$446.05
Lead Time
VHD250S Support Documentation
VHD250SSide-by-Side Fiber Holder Bottom Insert, Ø250 µm / Ø250 µm
$446.05
Today
VHD320S Support Documentation
VHD320SSide-by-Side Fiber Holder Bottom Insert, Ø320 µm / Ø320 µm
$446.05
Today
VHD250V Support Documentation
VHD250VDouble-V-Slot Fiber Holder Bottom Insert, Ø250 µm / Ø250 µm
$465.85
Today
VHD320V Support Documentation
VHD320VDouble-V-Slot Fiber Holder Bottom Insert, Ø320 µm / Ø320 µm
$465.85
Today
VHD320P Support Documentation
VHD320PDouble-V-Slot Fiber Holder Bottom Insert with Alignment Pins, Ø320 µm / Ø320 µm
$524.08
Today
VHS250250 Support Documentation
VHS250250Triple-V-Slot Fiber Holder Bottom Insert, Ø250 µm / Ø250 µm / Ø250 µm
$494.98
Today
VHS250400 Support Documentation
VHS250400Triple-V-Slot Fiber Holder Bottom Insert, Ø250 µm / Ø400 µm / Ø250 µm
$494.98
Today
VHS250500 Support Documentation
VHS250500Triple-V-Slot Fiber Holder Bottom Insert, Ø250 µm / Ø500 µm / Ø250 µm
$485.26
Today
VHS300350 Support Documentation
VHS300350Triple-V-Slot Fiber Holder Bottom Insert, Ø300 µm / Ø350 µm / Ø300 µm
$494.98
Lead Time
VHS320400 Support Documentation
VHS320400Triple-V-Slot Fiber Holder Bottom Insert, Ø320 µm / Ø400 µm / Ø320 µm
$494.98
Lead Time
VHS320550 Support Documentation
VHS320550Triple-V-Slot Fiber Holder Bottom Insert, Ø320 µm / Ø550 µm / Ø320 µm
$494.98
Today
