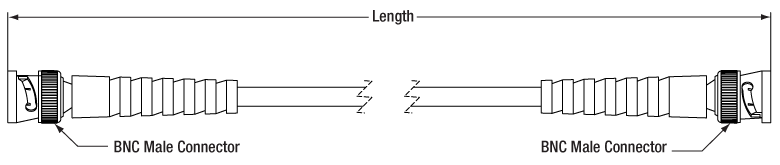

• 50 Ω ± 3 Ω Impedance
• DC - 4.0 GHz Frequency Range
• 500 V_RMS Working Voltage
• Tarnish-Resistant Brass Body
• Stress-Relief Connectors
• Ø0.2" Cable Outer Diameter
• RG-58 Cable

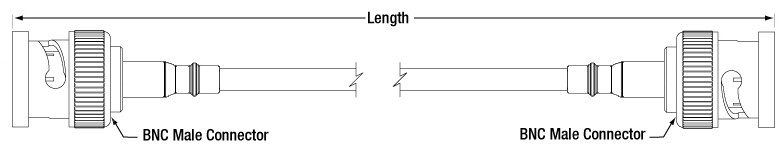

Click to Enlarge

Click to Enlarge

• Increased Flexibility
• 50 Ω Impedance
• DC - 4 GHz Frequency Range
• 500 V_RMS Working Voltage
• Tarnish-Resistant Brass Body
• Ø0.1" Cable Outer Diameter
• RG-174 Cable

Click for Details
Boot Style May Vary

Click to Enlarge
Boot Style Pictured Above is Only Representative

• Available in 6" to 48" Lengths
• 50 Ohm Impedance
• DC - 4.0 GHz Frequency Range
• 750 V (RMS) Dielectric Withstanding Voltage
• 250 V (RMS) Working Voltage
• Ø0.1" (Ø2.5 mm) Cable Diameter
• RG-316 Cable

Click to Enlarge

Click to Enlarge

• Right-Angle SMB Female and Straight BNC Male Connector
• 50 Ω Impedance
• DC to 4.0 GHz Frequency Range
• 1000 V (RMS) Dielectric Withstanding Voltage
• 0.40" (10.2 mm) Minimum Bend Radius
• No Bare Brass, Suitable for Use in Laser Systems

This cable has a right-angle, SMB female connector on one end and a straight, BNC male connector on the other. The connectors are made of nickel-plated brass. The RG-178 coaxial cable is flexible enough to reach a minimum bend radius of 0.4", and the 90° SMB connector allows the cable to be connected in tight areas without putting lateral force on the connection, making this cable ideal for use in space-constrained setups.

The PAA236R can be used with our Polaris^® mirror mounts with piezoelectric adjusters.

Click for Details
Boot Style May Vary

Click to Enlarge
Boot Style Pictured Above is Only Representative

• Available in 6" to 72" Lengths
• 50 Ω Impedance
• DC - 4.0 GHz Frequency Range
• 750 V (RMS) Dielectric Withstanding Voltage
• 250 V (RMS) Working Voltage
• Ø0.1" (Ø2.5 mm) Cable Diameter
• RG-316 Cable

Click to Enlarge

Click to Enlarge

• MMCX Male Connector to BNC Male Connector
• Available in 1 m and 1.8 m Lengths
• DC - 6 GHz Frequency Range
• 50 Ω Normal Impedance
• 170 V Max Operating Voltage

Each of these RG-174 coaxial cables features a male MMCX connector on one and a male BNC connector on the other. They can be connected to I/O ports on the Kinesis^® Vertical Translation Stage and Kinesis^® 30 mm XY Stage for external triggering applications.

Click to Enlarge

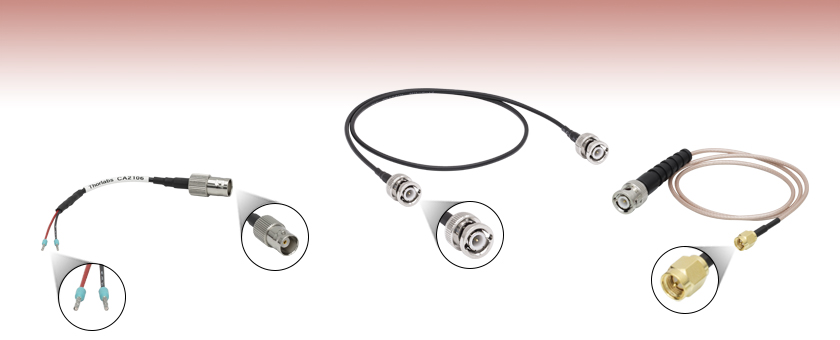

Connector ends of the CA2024 and CA2106 cables

• Screw Terminal Pins to BNC Connector
  • Female BNC: 6" Long Cable
  • Male BNC: 24" or 48" Long Cable
• 50 Ω Impedance
• DC - 1 GHz Frequency Range
• RG-174/U Cable

Each of these RG-174/U coaxial cables features a male or female BNC Connector on one end and two pins for screw terminals on the other. They can be connected to the output connectors of amplified detectors and are compatible with Thorlabs' line of BNC electrical adapters.

Click to Enlarge

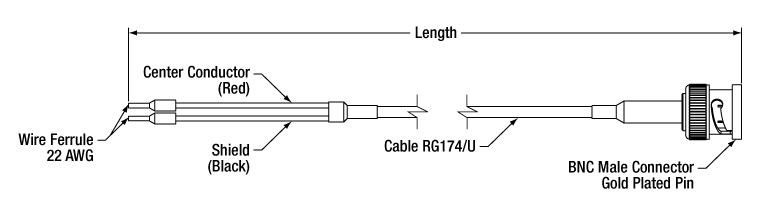

Drawing of the Screw Terminal Pins-to-Male BNC Connector Featured on CA2024 and CA2048 Cables

Click to Enlarge

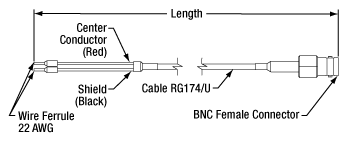

Drawing of the Screw Terminal Pins-to-Female BNC Connector Cable Featured on CA2106 Cables

Click to Enlarge

• Wall Mount Cable Racks
• Store Cables Straight and Untangled
• WMR14 is Ideal for Fiber Optic Patch Cables

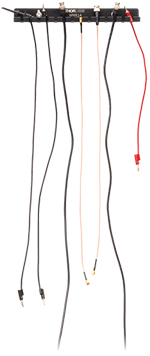

The WMR14 is a test lead holder for wires up to 0.210" (5.33 mm) in diameter and has 14 slots for cables. It is ideal for holding fiber optic patch cables.

The T2708 is a test lead holder for wires up to 0.450" (11.43 mm) in diameter and has 9 slots for cables.

The cable racks are made from cold rolled steel with a baked enamel finish. The wall mounting holes are separated by 6.63" (168.3 mm) for the WMR14, and 3" (76.2 mm) for the T2708. Both racks are 11" (279 mm) long and extend outward from the
wall by 3.5" (88.9 mm).
